Circuit Diagram

(M/T)

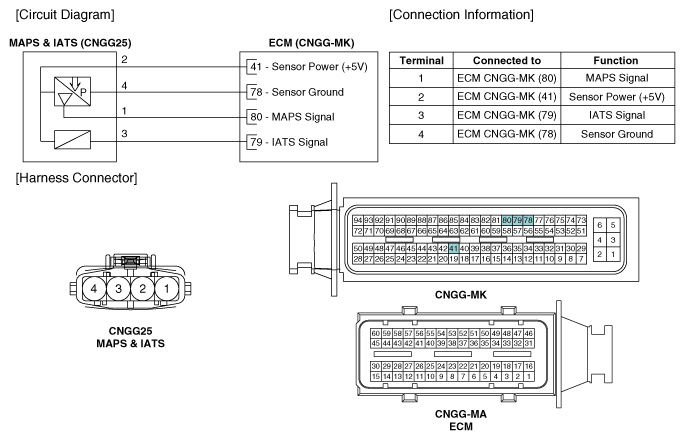

Fig 1: Manifold Absolute Pressure Sensor Circuit Diagram (M/T)
G11796908Courtesy of KIA MOTORS AMERICA, INC.

(A/T)

Fig 2: Manifold Absolute Pressure Sensor Circuit Diagram (A/T)
G11796909Courtesy of KIA MOTORS AMERICA, INC.
