Components And Components Location
›
Components
Components And Components Location: Components

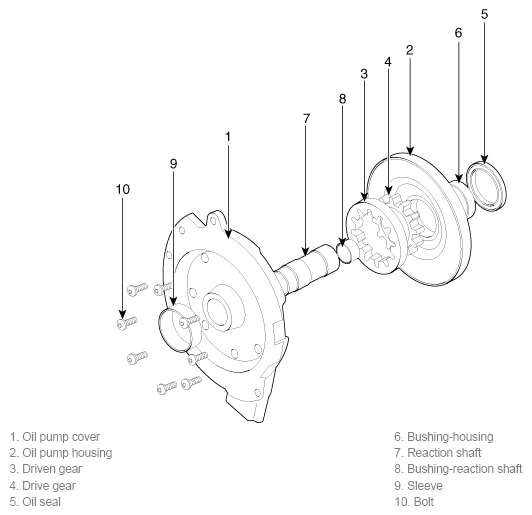

Fig 1: Oil Pump Components Location
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
