Components Location

[SULEV Type]

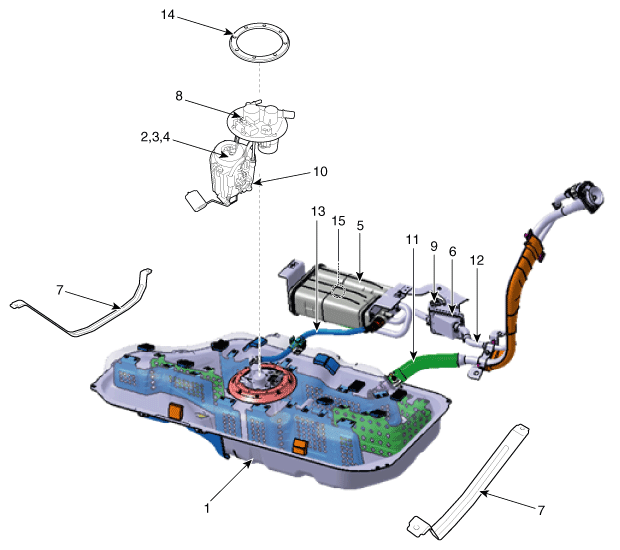

Fig 1: Fuel Delivery System Components Location - SULEV Type
G11794956Courtesy of KIA MOTORS AMERICA, INC.

[LEV2 Type]

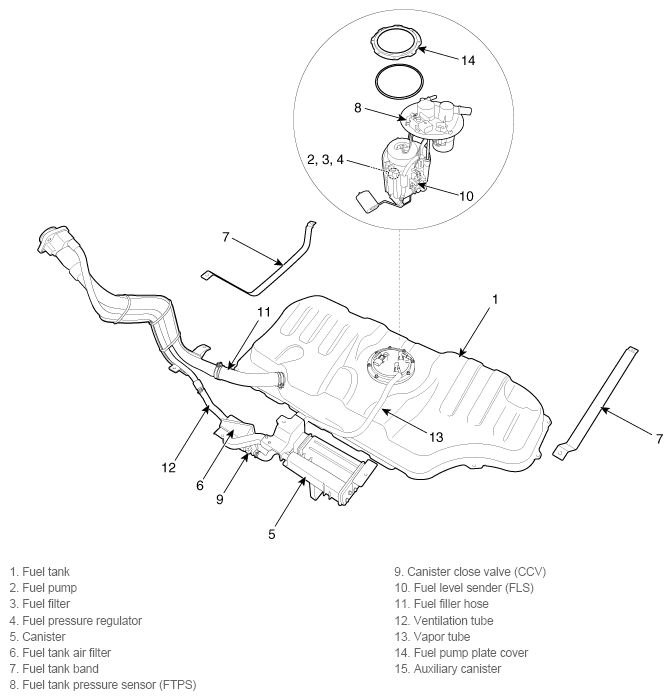

Fig 2: Fuel Delivery System Components Location - LEV2 Type
G11794957Courtesy of KIA MOTORS AMERICA, INC.
