Accelerator Position Sensor (APS)
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram
(M/T)

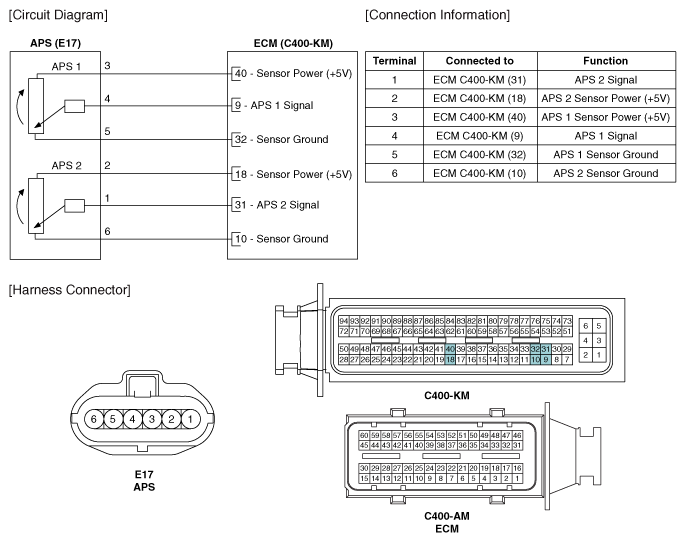

Fig 1: Accelerator Position Sensor (APS) Circuit Diagram - M/T
Courtesy of KIA MOTORS AMERICA, INC.
(A/T)

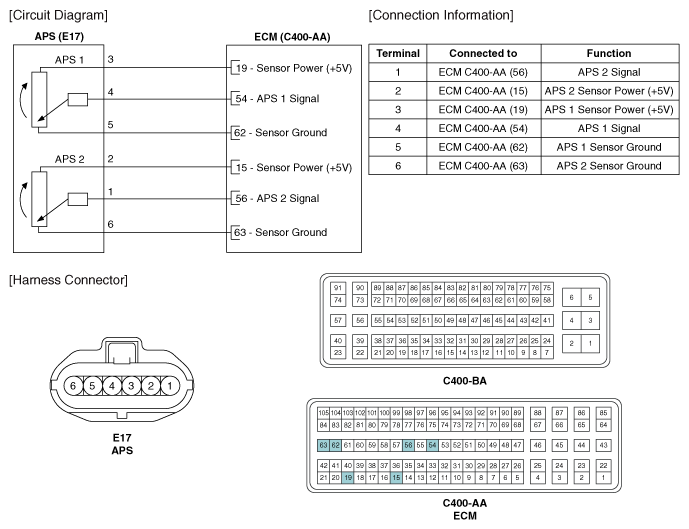

Fig 2: Accelerator Position Sensor (APS) Circuit Diagram - A/T
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
