Engine Control System - 1.6L
›
Ambient Temperature Sensor (ATS)
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram
(M/T)

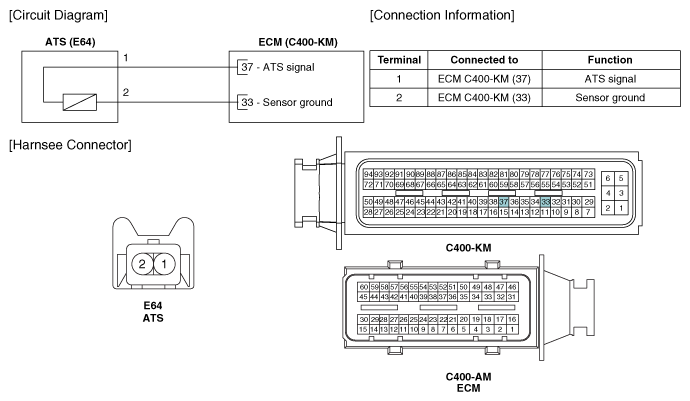

Fig 1: Ambient Temperature Sensor (ATS) Circuit Diagram And Connector - M/T
Courtesy of KIA MOTORS AMERICA, INC.
(A/T)

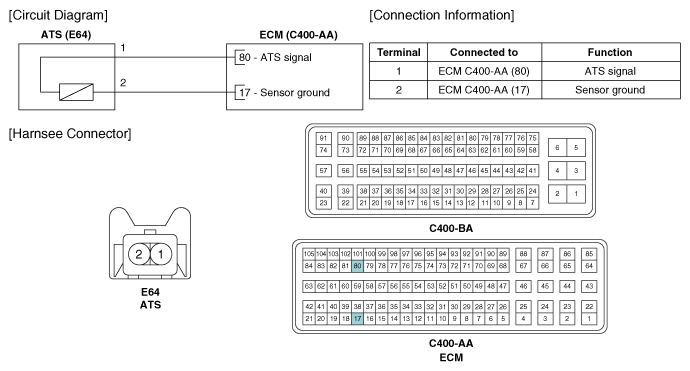

Fig 2: Ambient Temperature Sensor (ATS) Circuit Diagram And Connector - A/T
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
