Forte5 SX, Automatic Trans
›
Repair and Diagnosis
›
Engine Performance
›
Engine Control Systems
›
Engine Control System - 1.6L
›
Boost Pressure Sensor (BPS)
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram
(M/T)

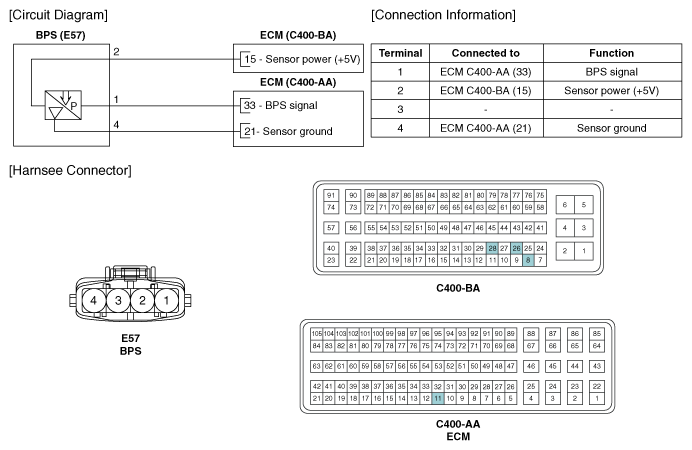

Fig 1: Boost Pressure Sensor (BPS) Circuit Diagram - M/T
Courtesy of KIA MOTORS AMERICA, INC.
(A/T)

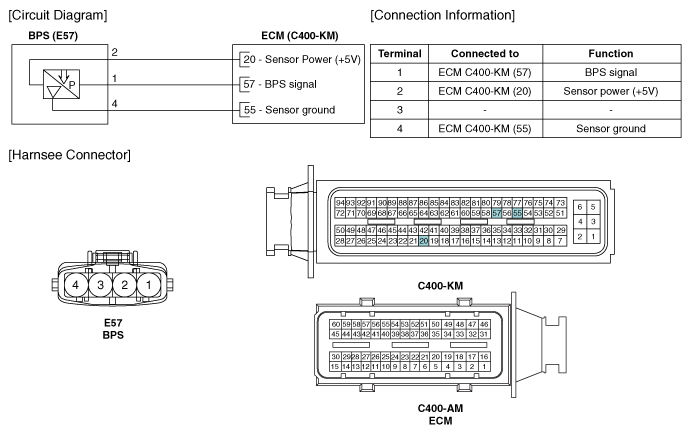

Fig 2: Boost Pressure Sensor (BPS) Circuit Diagram - A/T
Courtesy of KIA MOTORS AMERICA, INC.
