Circuit Diagram

(M/T)

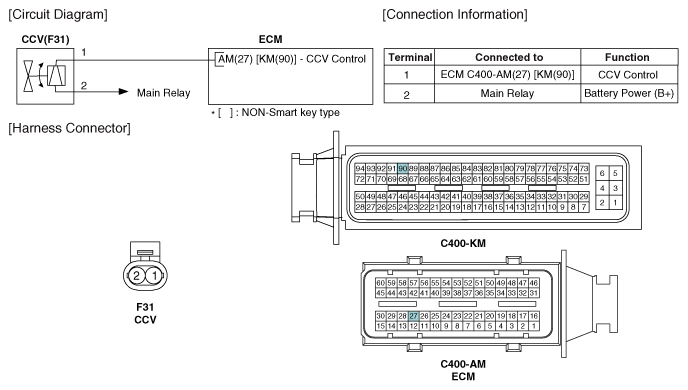

Fig 1: Canister Close Valve (CCV) Circuit Diagram - M/T
G11794952Courtesy of KIA MOTORS AMERICA, INC.

(A/T)

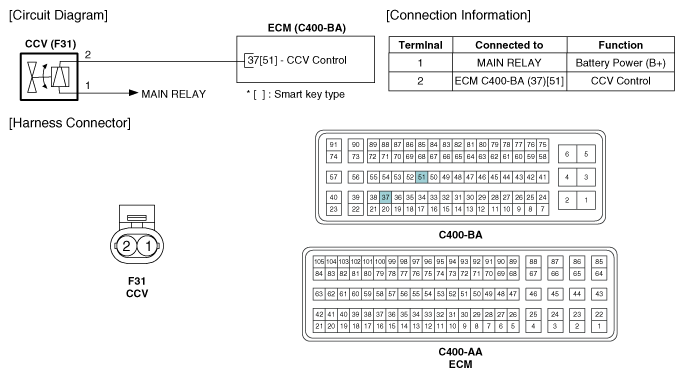

Fig 2: Canister Close Valve (CCV) Circuit Diagram - A/T
G11794953Courtesy of KIA MOTORS AMERICA, INC.
