Circuit Diagram

(M/T)

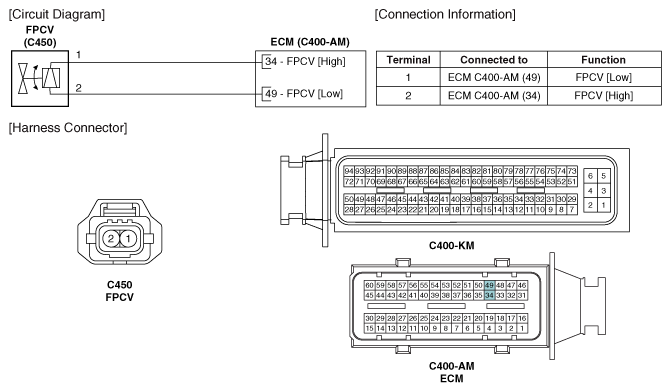

Fig 1: Fuel Pressure Control Valve Circuit Diagram - M/T
G11794949Courtesy of KIA MOTORS AMERICA, INC.

(A/T)

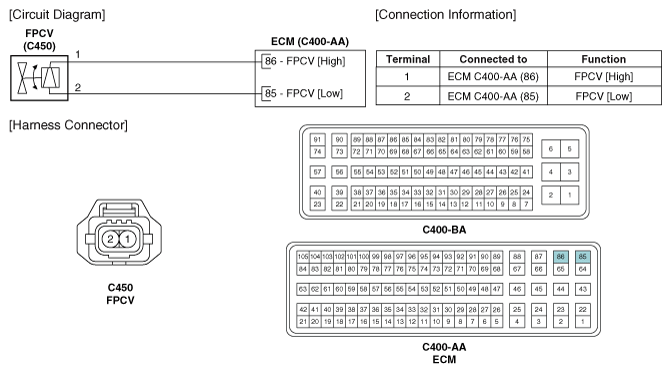

Fig 2: Fuel Pressure Control Valve Circuit Diagram - A/T
G11794950Courtesy of KIA MOTORS AMERICA, INC.
