Circuit Diagram

(M/T)

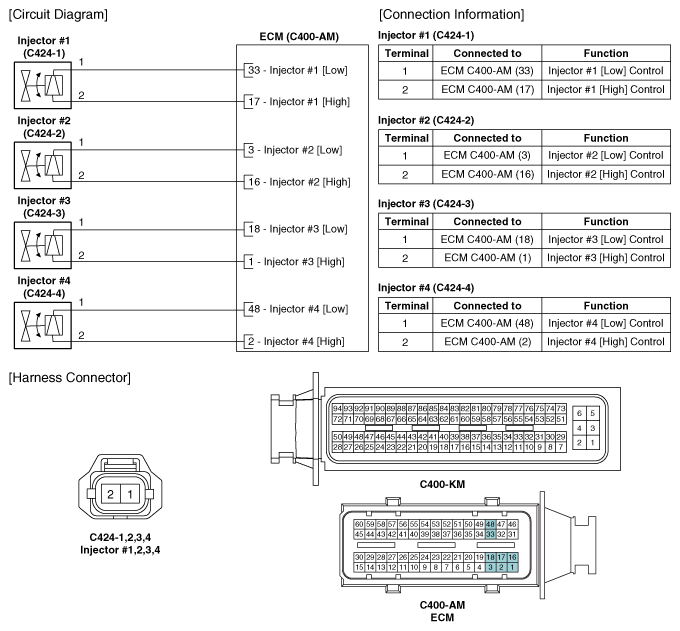

Fig 1: GDI Injector Circuit Diagram - M/T
G11794918Courtesy of KIA MOTORS AMERICA, INC.

(A/T)

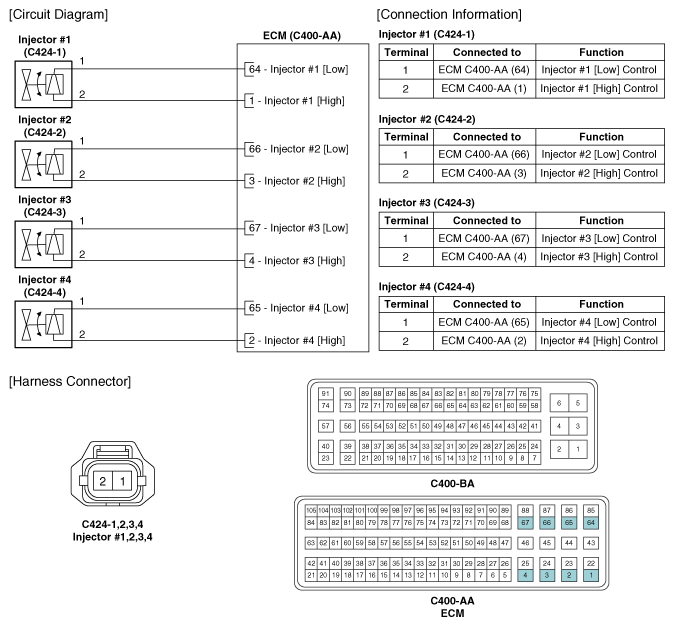

Fig 2: GDI Injector Circuit Diagram - A/T
G11794919Courtesy of KIA MOTORS AMERICA, INC.
