Circuit Diagram

(M/T)

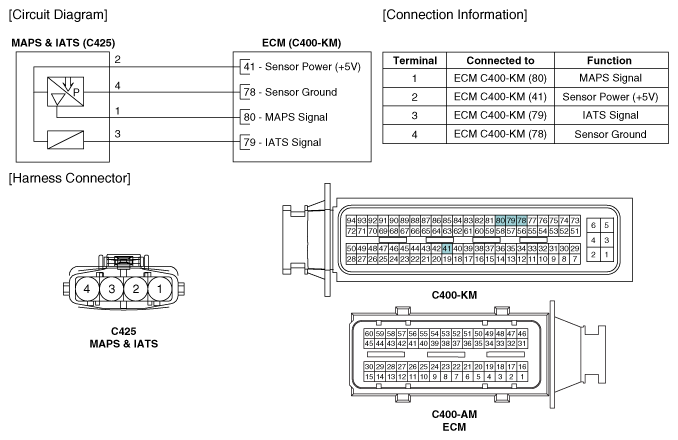

Fig 1: MAPS And IATS (C425) Circuit And Connector - M/T
G11794854Courtesy of KIA MOTORS AMERICA, INC.

(A/T)

Fig 2: MAPS And IATS (C425) Circuit And Connector - A/T
G11794855Courtesy of KIA MOTORS AMERICA, INC.
