Circuit Diagram

(M/T)

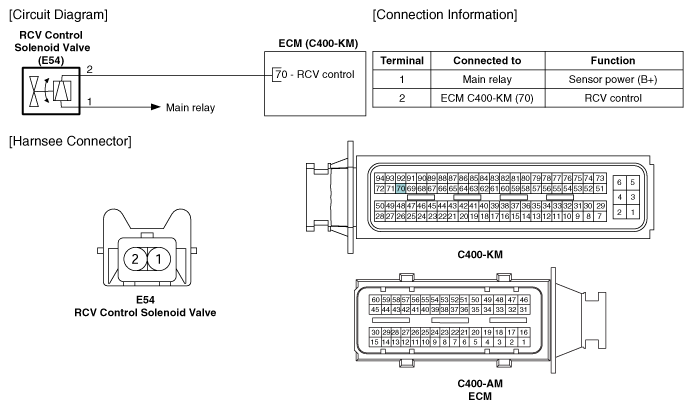

Fig 1: RCV Control Solenoid Valve Circuit Diagram - M/T
G11794943Courtesy of KIA MOTORS AMERICA, INC.

(A/T)

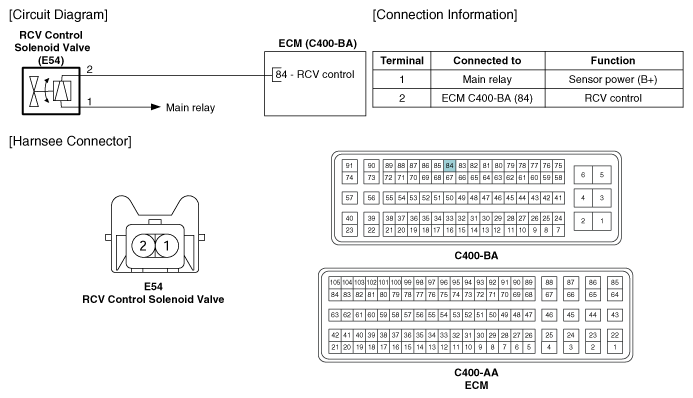

Fig 2: RCV Control Solenoid Valve Circuit Diagram - A/T
G11794944Courtesy of KIA MOTORS AMERICA, INC.
