Engine Control System Diagnosis - 1.6L (1 Of 3)
›
DTC P0122: Throttle Position Sensor 1 Signal Circuit Low Input
›
Specification
›
Signal Waveform & Data
Signal Waveform & Data

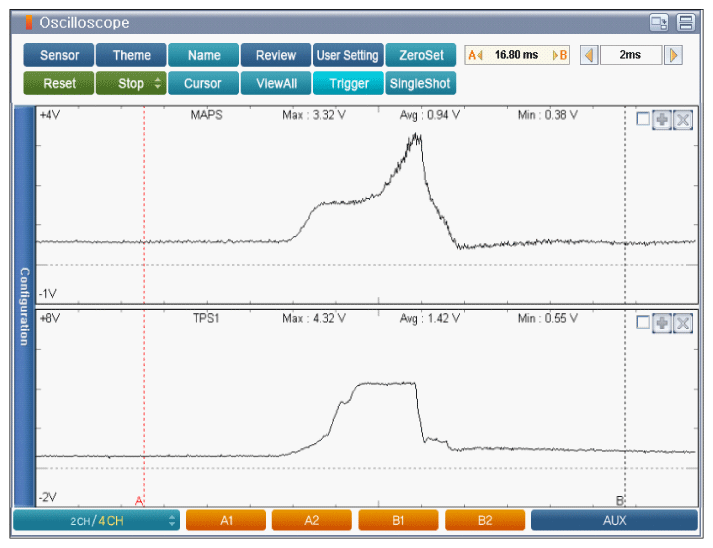

Fig 1: Screen Display - Normal Waveforms Of MAPS & TPS1 At Engine Wide Open Throttle (WOT)
Courtesy of KIA MOTORS AMERICA, INC.
