Signal Waveform & Data

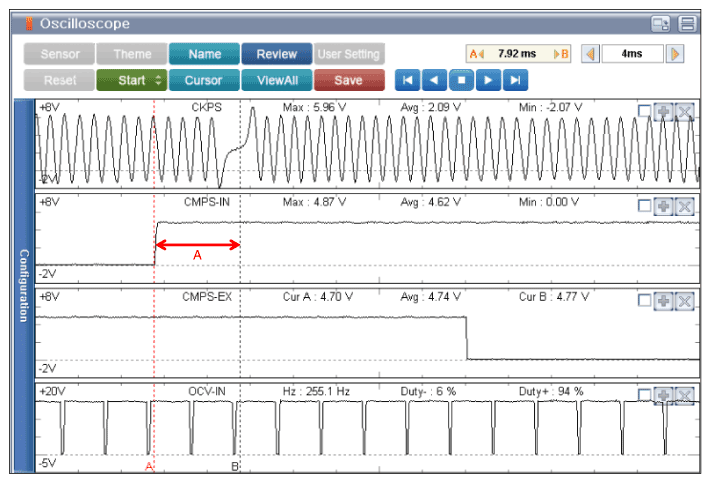

Fig 1: Screen Display - Normal Waveforms Of CKPS, CMPS-IN At Engine Idle

Courtesy of KIA MOTORS AMERICA, INC.

A: CKPS & CMPS (Intake side) synchronization - There are about 4 to 5 teeth between the CKPS missing tooth and CMPS signal
