Home › Kia › 2016 › Forte5 SX, Automatic Trans › Repair and Diagnosis › Transmission › Automatic Trans › Automatic Transaxle System - 1.6L › Automatic Transaxle › Components And Components Location › Components

Components And Components Location: Components

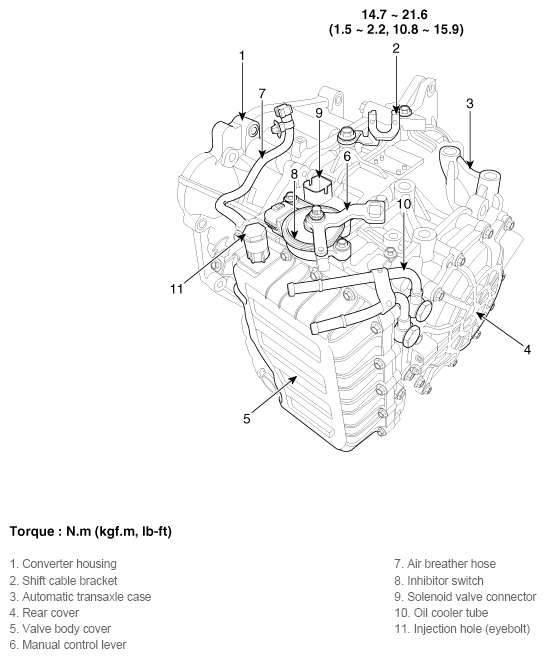

Fig 1: Automatic Transaxle Components Location
G11795136Courtesy of KIA MOTORS AMERICA, INC.
