FixVault
Home
›
Kia
›
2016
›
Forte5 SX, Automatic Trans
›
Repair and Diagnosis
›
Transmission
›
Automatic Trans
›
Hydraulic System - 1.6L
›
Automatic Transaxle Fluid
›
Components And Components Location
›
Components Location
Components Location

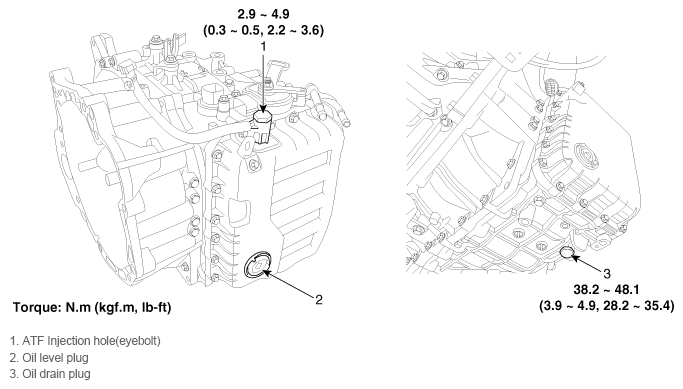

Fig 1: Locate Automatic Transaxle System Fluid Injection Hole, Oil Drain And Oil Level Plug
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
