Forte5 SX, Automatic Trans
›
Repair and Diagnosis
›
Transmission
›
Automatic Trans
›
Hydraulic System - 1.6L
›
Valve Body
›
Components And Components Location
›
Components Location
Components Location

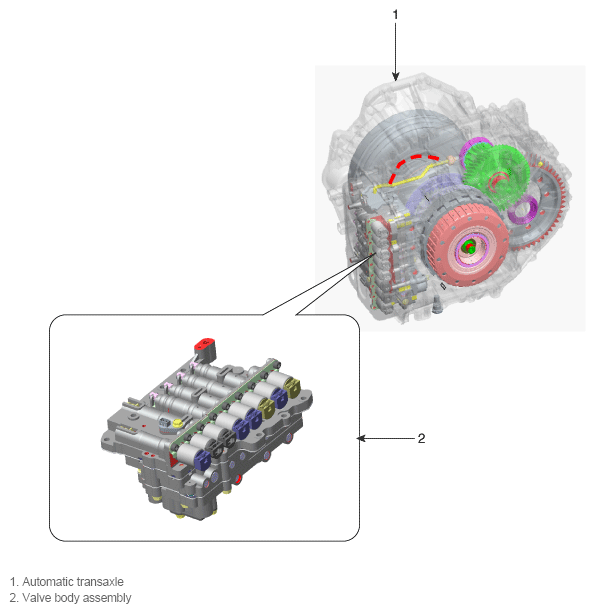

Fig 1: Locate Valve Body Assembly
Courtesy of KIA MOTORS AMERICA, INC.

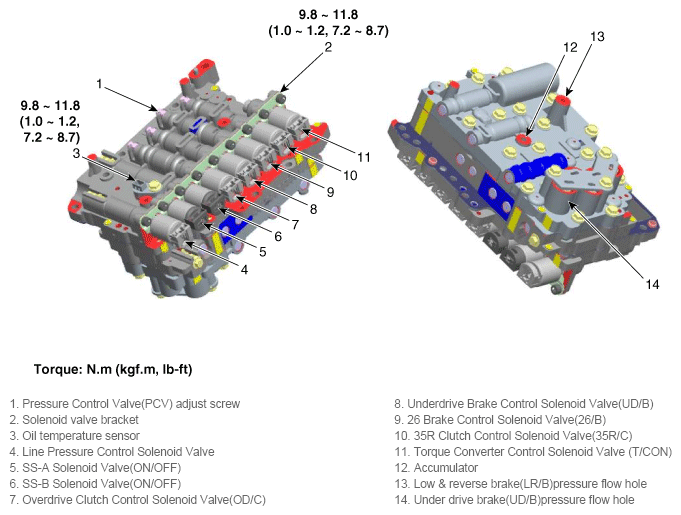

Fig 2: Valve Body Assembly Components Location
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
