Forte5 SX, Automatic Trans
›
Repair and Diagnosis
›
Transmission
›
Transmission Control Systems
›
Automatic Transaxle Control System - 1.6L
›
Transaxle Control Module (TCM)
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

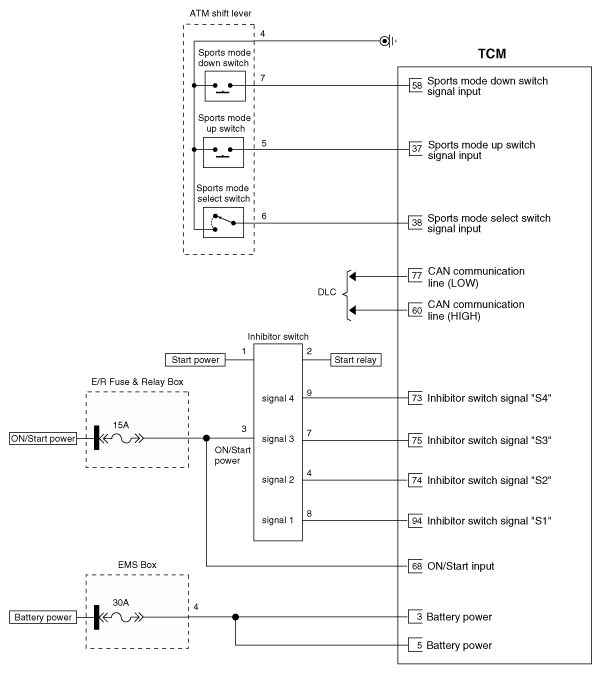

Fig 1: Transaxle Control Module (TCM) Circuit Diagram (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

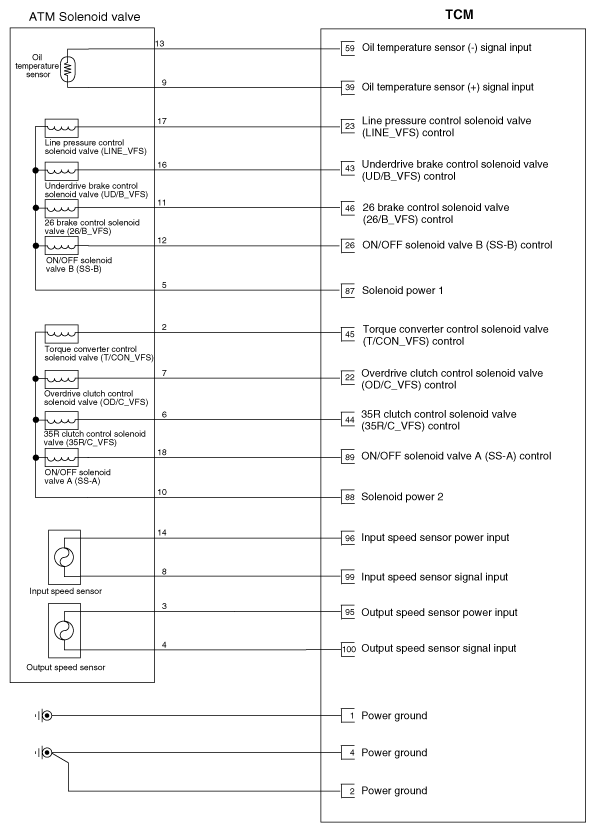

Fig 2: Transaxle Control Module (TCM) Circuit Diagram (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
