Engine Control System - 1.6L
›
Camshaft Position Sensor (CMPS)
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram
(M/T)

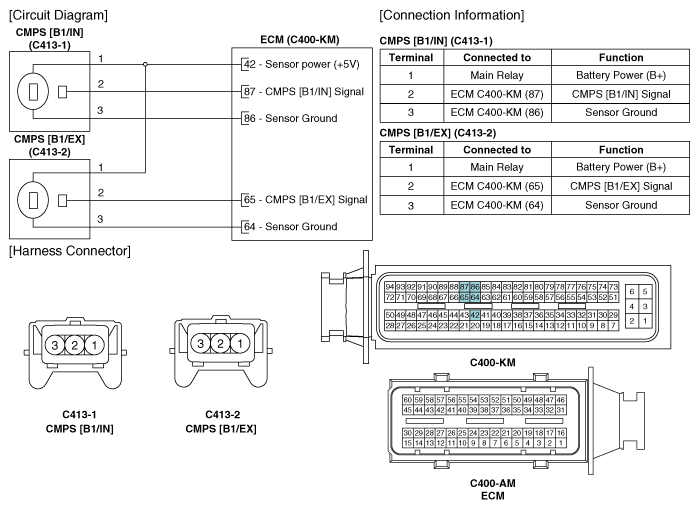

Fig 1: Camshaft Position Sensor (CMPS) Circuit Diagram - M/T
Courtesy of KIA MOTORS AMERICA, INC.
(A/T)

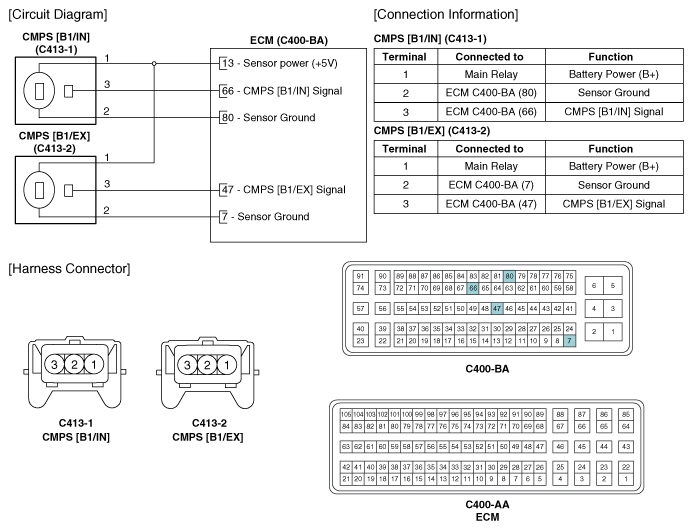

Fig 2: Camshaft Position Sensor (CMPS) Circuit Diagram - A/T
Courtesy of KIA MOTORS AMERICA, INC.
