Repair Procedures: Removal

CAUTION:
  • Put on gloves to protect your hands.
NOTE:
  • Use seat covers to avoid damaging any surfaces.
  1. Remove the roof side moulding.

    (Refer to Body Side Mouldings - "ROOF SIDE MOULDING ")

  2. Remove the rear package tray trim.

    (Refer to Interior Trim - "REAR PACKAGE TRAY TRIM ")

  3. Remove the high mounted stop lamp.

    (Refer to Body Electrical System - "HIGH MOUNTED STOP LAMP ")

  4. After loosening the mounting clip, then remove the rear window glass side cover (A).
    Fig 1: Loosening Rear Window Glass Side Cover Mounting Clip
    G11801423Courtesy of KIA MOTORS AMERICA, INC.
  5. Using a screwdriver or ornament remover, remove the rear window glass lower cover (A).
    Fig 2: Locating Rear Window Glass Lower Cover
    G11801424Courtesy of KIA MOTORS AMERICA, INC.
  6. Disconnect the rear window glass defogger connector.
  7. Spread the WD-40 on the side of rear window glass.
  8. Using masking tape create some alignment marks (C) to aid in reinstallation.
    Fig 3: Alignment Marks (C)
    G11801435Courtesy of KIA MOTORS AMERICA, INC.
  9. Cut out the adhesive using the cutter (A).

    Information

    • Please use the cutter with a blade length between 8-12 inches.

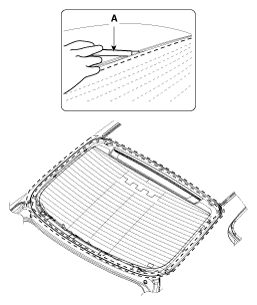

    Fig 4: Cutting Out Adhesive Using Cutter
    G11801425Courtesy of KIA MOTORS AMERICA, INC.
  10. Enough on the upper (A) and lower (B) side (C) of rear window glass and then cut out the adhesive using the cutter tool (09861-31100).
    Fig 5: Cutting Out Adhesive Using Cutter Tool (09861-31100)
    G11801426Courtesy of KIA MOTORS AMERICA, INC.
  11. Remove the rear window glass (A).
NOTE:
  • When removing and installing the rear window glass, an assistant is necessary.
Fig 6: Locating Rear Window Glass
G11801427Courtesy of KIA MOTORS AMERICA, INC.
