CVVT Oil Control Valve (OCV): Specifications: Specification

CVVT OIL CONTROL VALVE (OCV) RESISTANCE SPECIFICATION

Item Specification
Coil Resistance (Ω) 9.4 ~ 10.4 [20°C (68°F)]

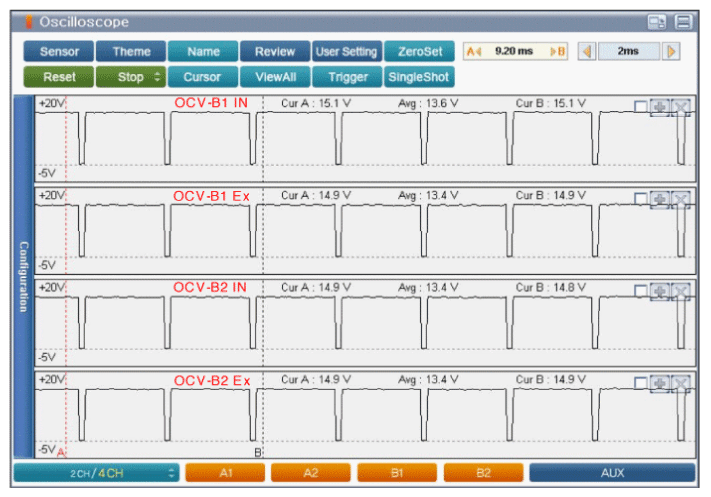

Fig 1: Screen Display - Oscilloscope
G11805021Courtesy of KIA MOTORS AMERICA, INC.
