Engine Control System - 3.8L
›
Injector
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

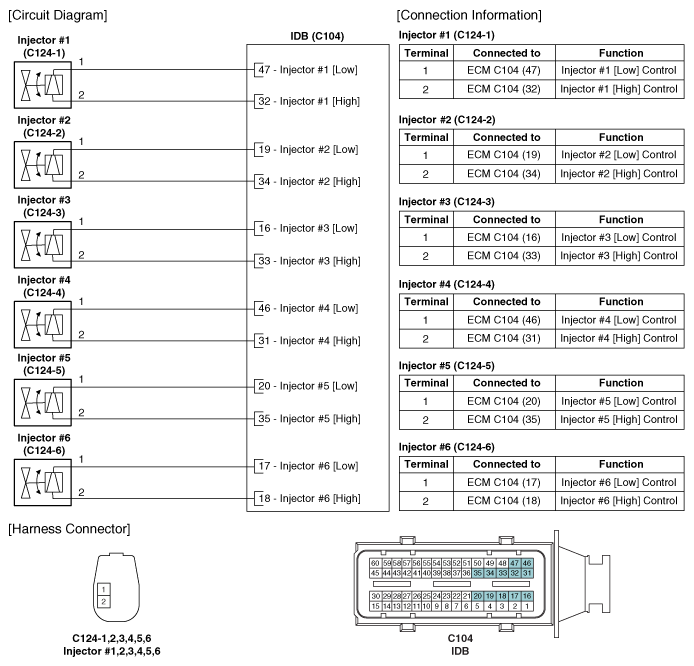

Fig 1: Injector Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
