K900 V6
›
Repair and Diagnosis
›
Engine Performance
›
Engine Control Systems
›
Engine Control System - 3.8L
›
Rail Pressure Sensor (RPS)
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

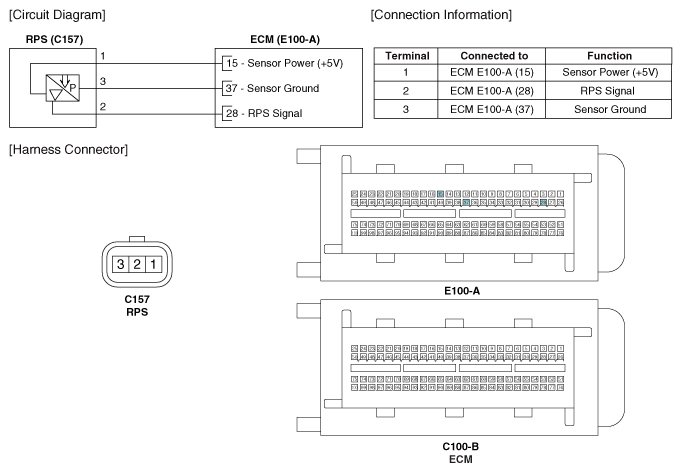

Fig 1: Rail Pressure Sensor Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
