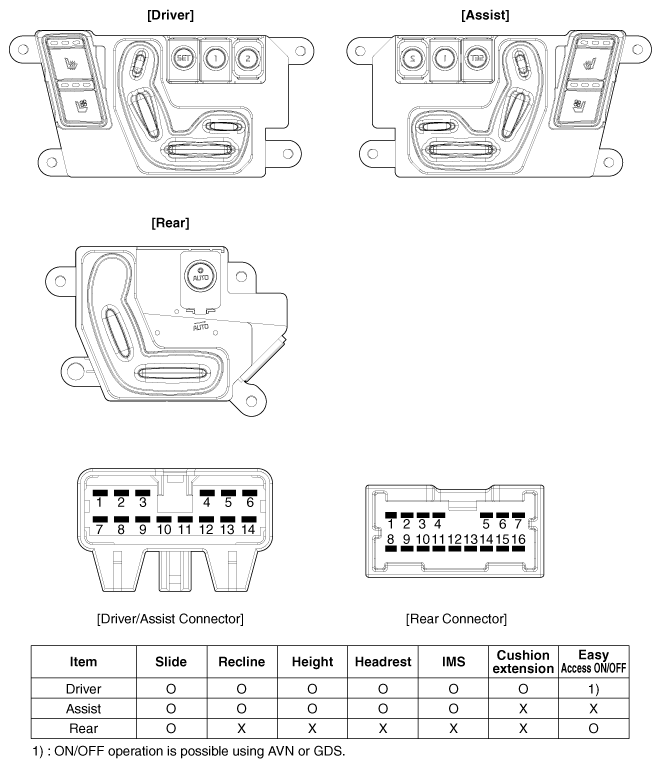

Components and Components Location: Components
| No. | Dirver | Assist | Rear |
| Option | Head + IMS | Head + Air + Height | Heater |
| 1 | ECU battery (+) | ECU battery (+) | Tail lamp |
| 2 | IGN1 | IGN1 | - |
| 3 | Tail lamp | Tail lamp | Illumination (-) |
| 4 | - | - | GND |
| 5 | Illumination (-) | Illumination (-) | - |
| 6 | GND | GND | Forward slide switch |
| 7 | - | - | Backward slide switch |
| 8 | - | - | - |
| 9 | - | - | - |
| 10 | - | - | - |
| 11 | - | - | Auto switch signal input |
| 12 | LIN BUS | LIN BUS | Auto switch IND output |
| 13 | - | - | Auto switch signal output |
| 14 | - | - | - |
| 15 | Detent | ||
| 16 | Auto switch IND input | ||
