Components and Components Location: Components

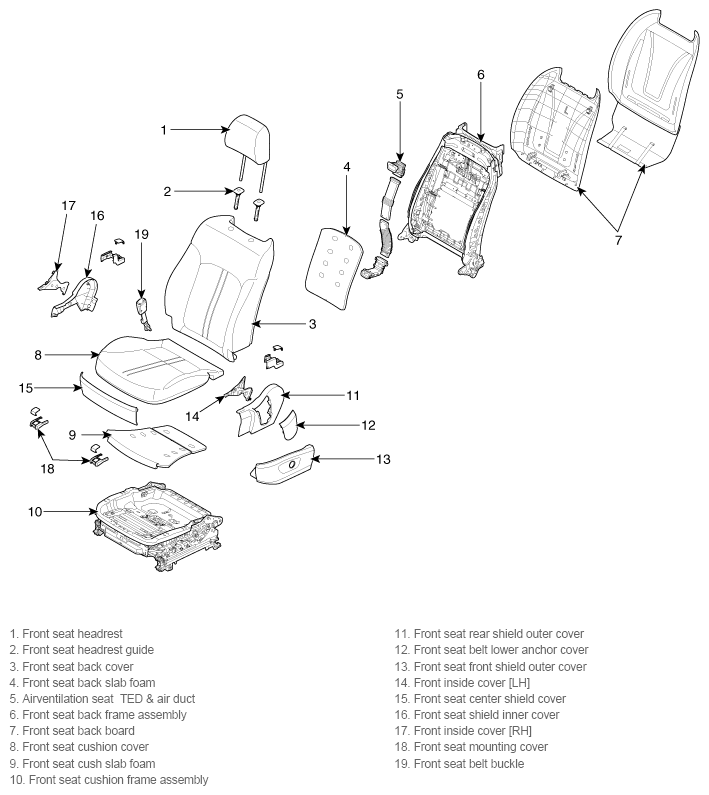

Fig 1: Locating Front Seat Components
G11801085Courtesy of KIA MOTORS AMERICA, INC.
