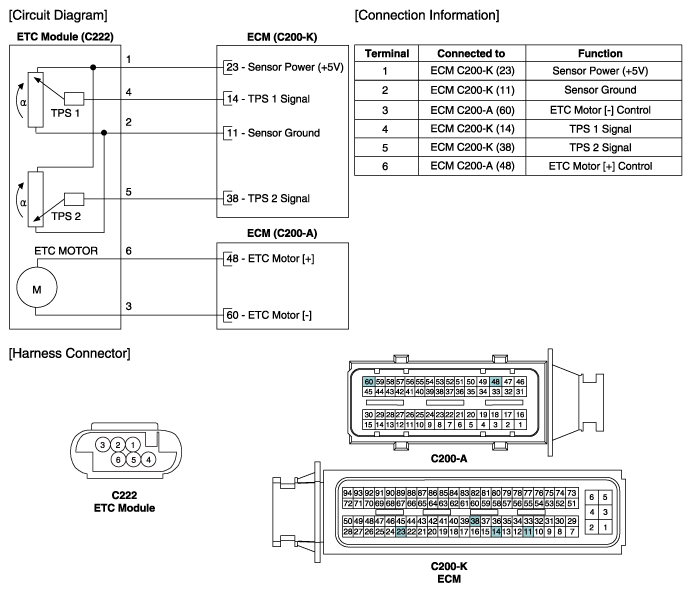

Home › Kia › 2016 › K900 V8 › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 5.0L › ETC (Electronic Throttle Control) System › Schematic Diagrams › Circuit Diagram
