Engine Control System - 5.0L
›
Engine Control Module (ECM)
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

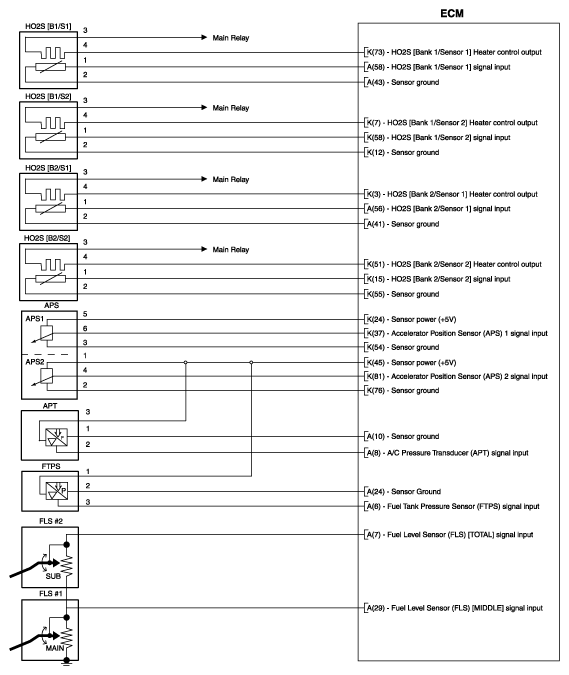

Fig 1: Electronic Control Module Circuit (1 Of 5)
Courtesy of KIA MOTORS AMERICA, INC.

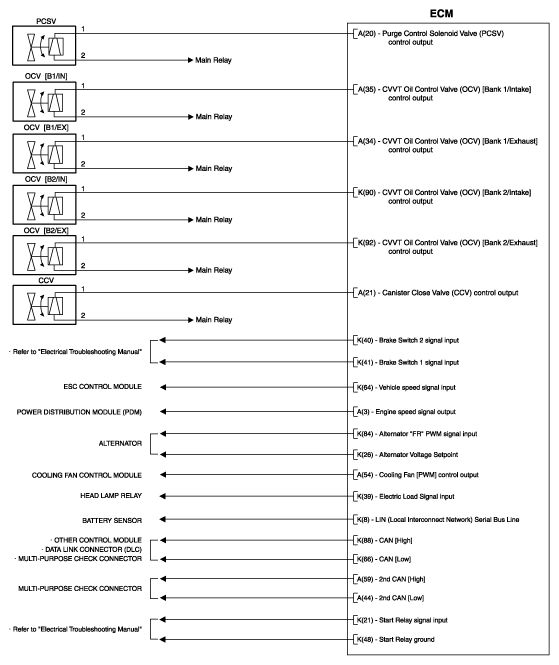

Fig 2: Electronic Control Module Circuit (2 Of 5)
Courtesy of KIA MOTORS AMERICA, INC.

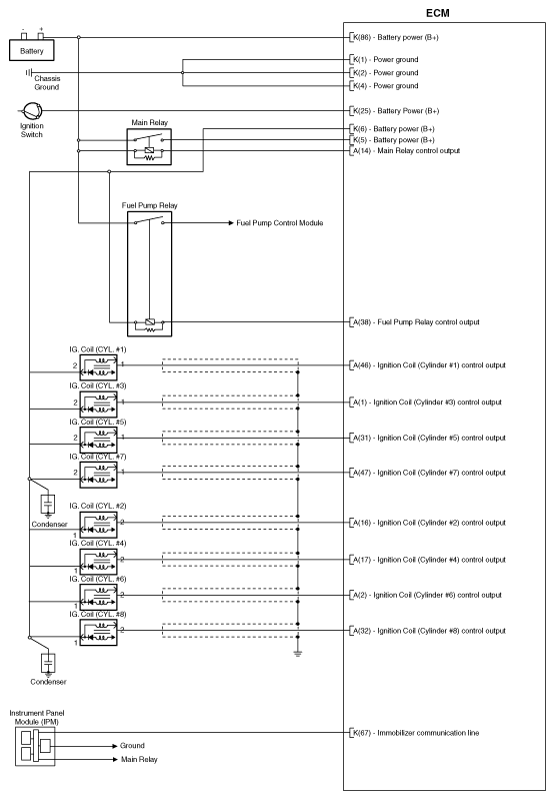

Fig 3: Electronic Control Module Circuit (3 Of 5)
Courtesy of KIA MOTORS AMERICA, INC.

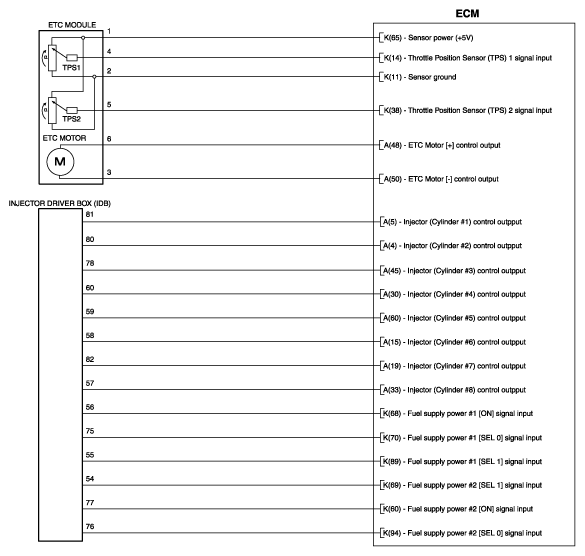

Fig 4: Electronic Control Module Circuit (4 Of 5)
Courtesy of KIA MOTORS AMERICA, INC.

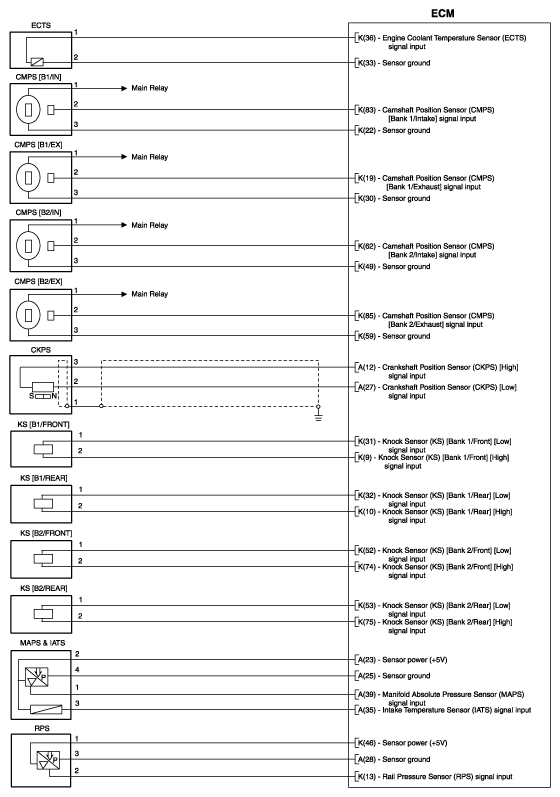

Fig 5: Electronic Control Module Circuit (5 Of 5)
Courtesy of KIA MOTORS AMERICA, INC.
