Kia
›
2016
›
K900 V8
›
Repair and Diagnosis
›
Engine Performance
›
Engine Control Systems
›
Engine Control System - 5.0L
›
Injector
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

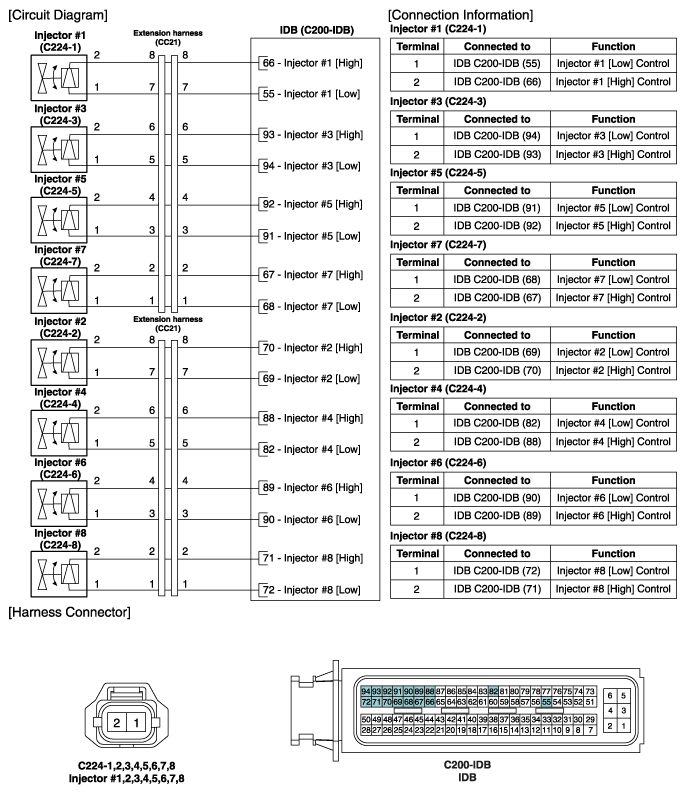

Fig 1: Injector 1 Schematic
Courtesy of KIA MOTORS AMERICA, INC.
