Components and Components Location: Components

WARNING: This page is about a different variant/trim than selected.

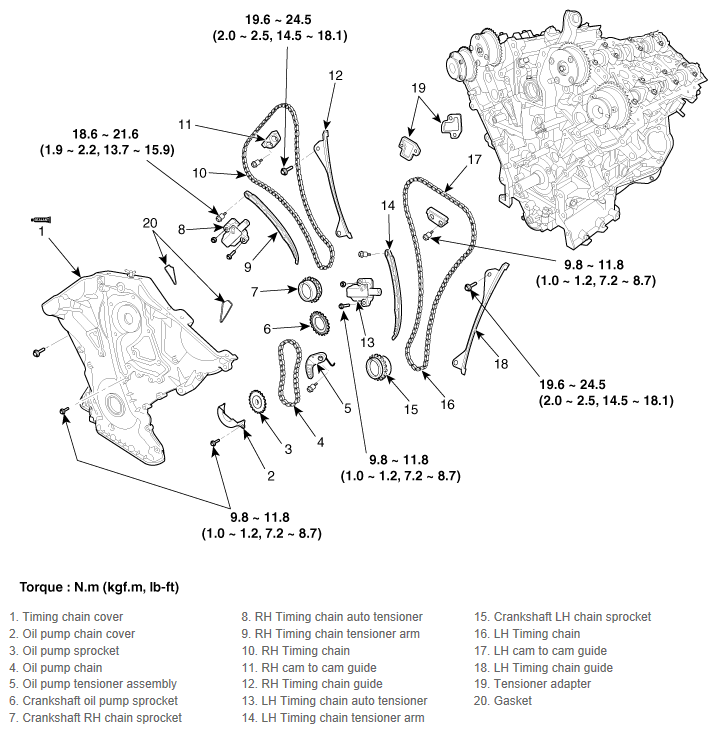

Fig 1: Exploded View Of Timing System Components With Torque Specification (1 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.

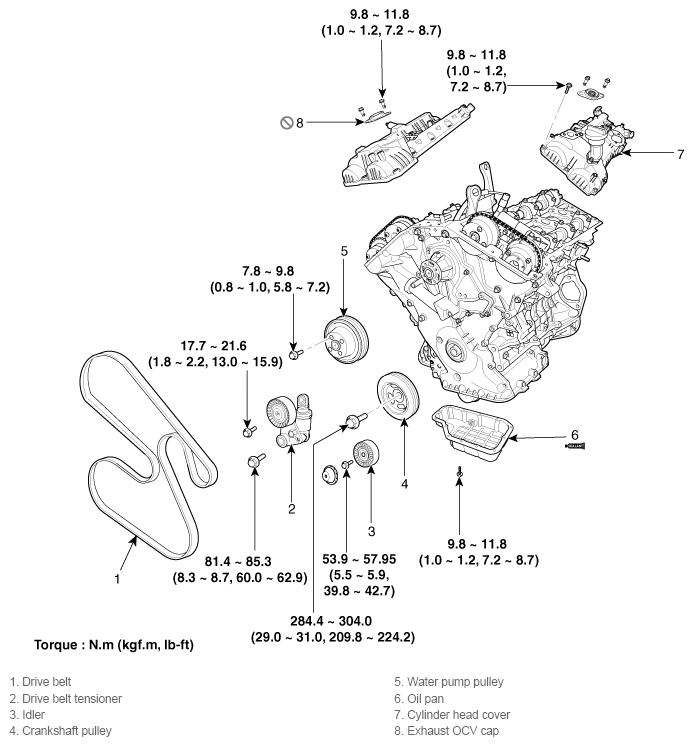

Fig 2: Exploded View Of Timing System Components With Torque Specification (2 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.
