Repair Procedures: Installation

Install in the reverse order of removal.
Tighten the HECU mounting bolts and nuts to the specified torque.
After installation, bleed the brake system.
(Refer to BRAKE SYSTEM BLEEDING Brake system - )
Connect the KDS/GDS to the data link connector located underneath the dash panel.
Select and operate according to the instructions on the KDS/GDS screen.

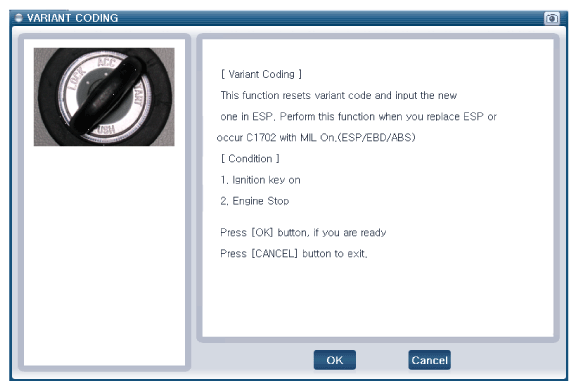

Fig 1: Display - Variant Coding Screen (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

Fig 2: Display - Variant Coding Screen (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

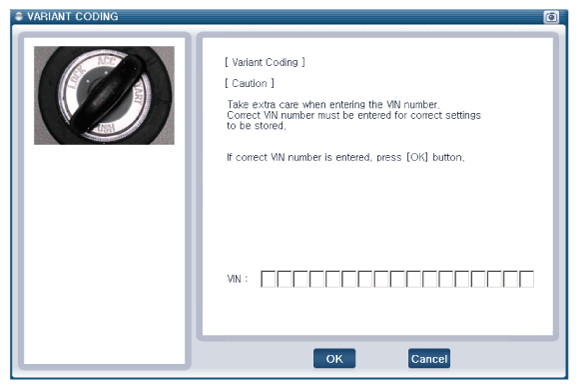

Fig 3: Display - Caution For Variant Coding Screen
Courtesy of KIA MOTORS AMERICA, INC.
