Engine Control System - 2.4L - Optima (Except HEV)
›
CVVT Oil Control Valve (OCV)
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

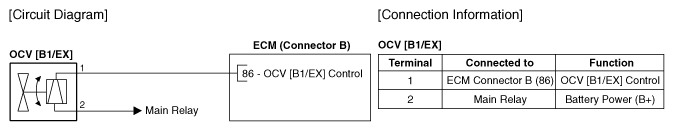

Fig 1: Continuous Variable Valve Timing Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
