Home › Kia › 2016 › Optima EX › Repair and Diagnosis › External Pages › Different variant/trim › Section 12 (Hybrid Control System (HEV)) › Hybrid Power Control Unit (HPCU) › Components And Components Location › Components

Components And Components Location: Components

WARNING: This page is about a different variant/trim than selected.

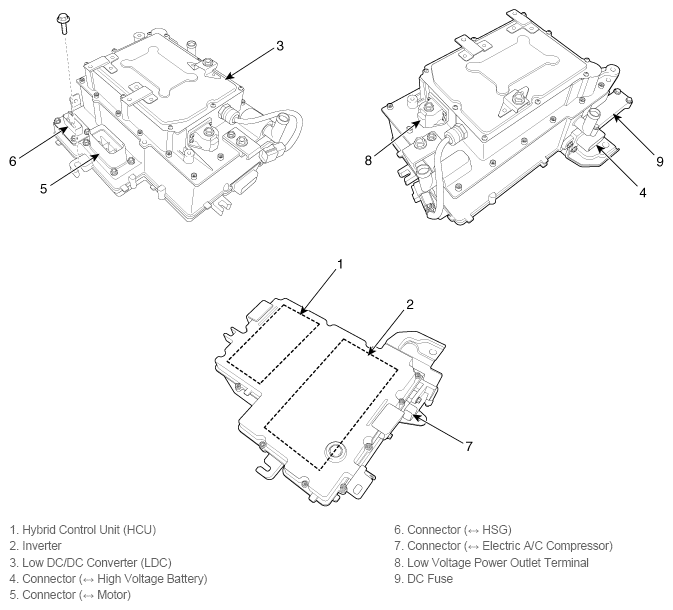

Fig 1: Hybrid Power Control Unit Components
G11818648Courtesy of KIA MOTORS AMERICA, INC.
