Section 24 (Heater System (HEV))
›
Temperature Control Actuator
›
Components And Components Location
›
Component Location
Component Location
WARNING:
This page is about a different variant/trim than selected.

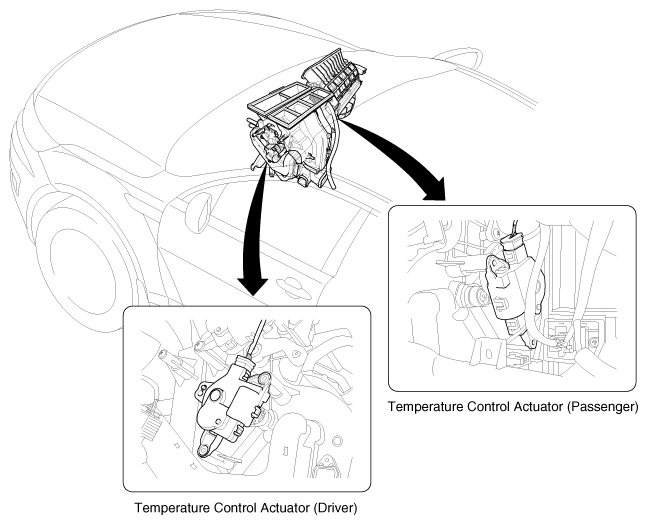

Fig 1: Temperature Control Actuator Components Location
Courtesy of KIA MOTORS AMERICA, INC.
