Component Location

WARNING: This page is about a different variant/trim than selected.

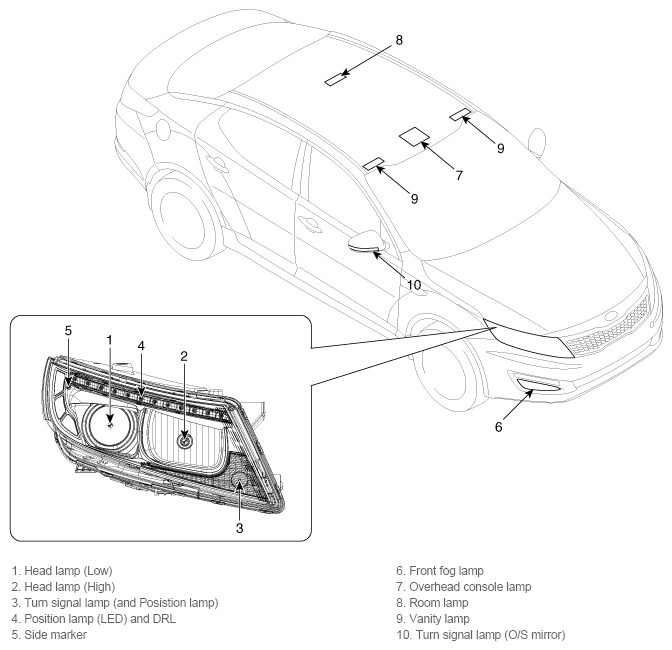

Fig 1: Lighting System Components Location (1 Of 2)
G11818226Courtesy of KIA MOTORS AMERICA, INC.

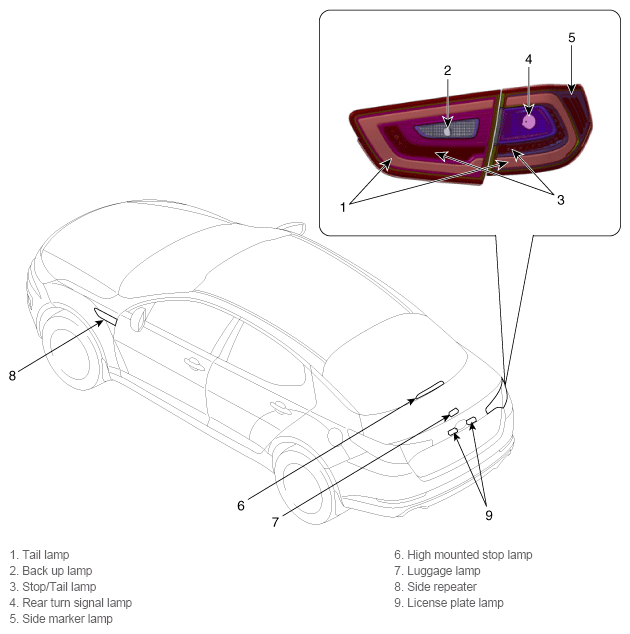

Fig 2: Lighting System Components Location (2 Of 2)
G11818227Courtesy of KIA MOTORS AMERICA, INC.
