Components And Components Location: Components

WARNING: This page is about a different variant/trim than selected.

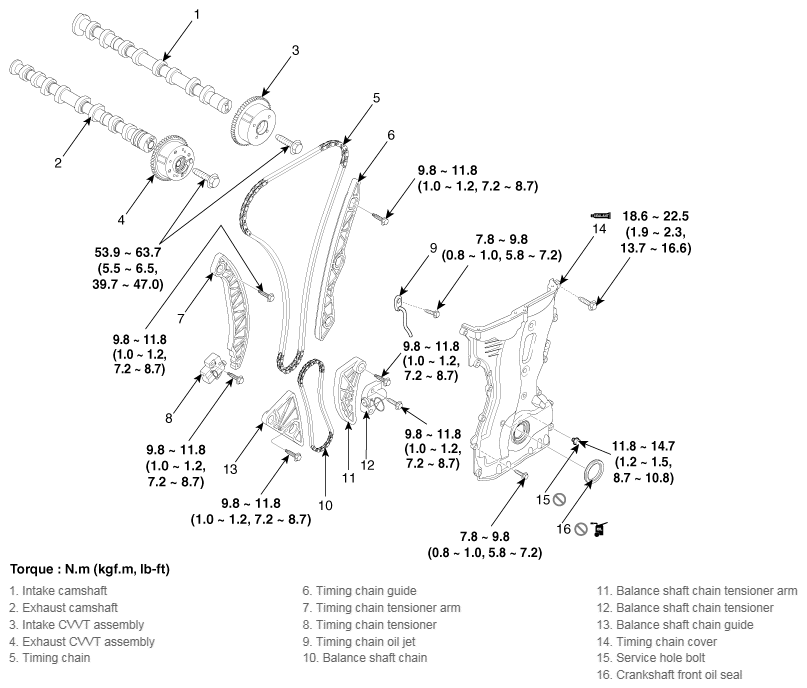

Fig 1: Timing Chain Components And Components Location
G11815213Courtesy of KIA MOTORS AMERICA, INC.
