Component Location

WARNING: This page is about a different variant/trim than selected.

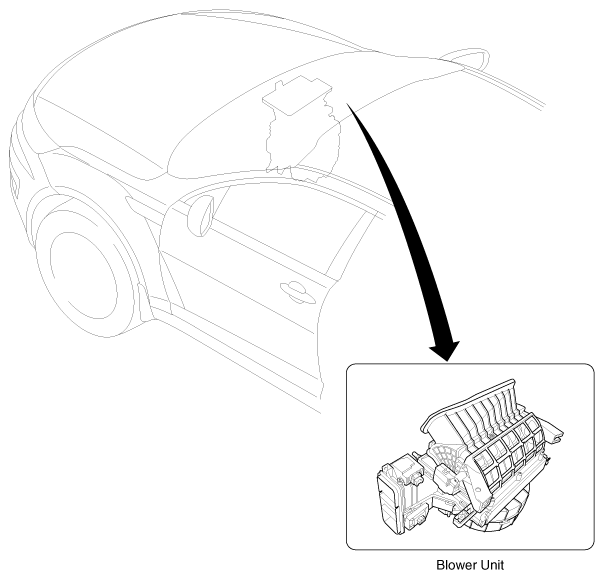

Fig 1: Blower Unit Component Location
G11818541Courtesy of KIA MOTORS AMERICA, INC.

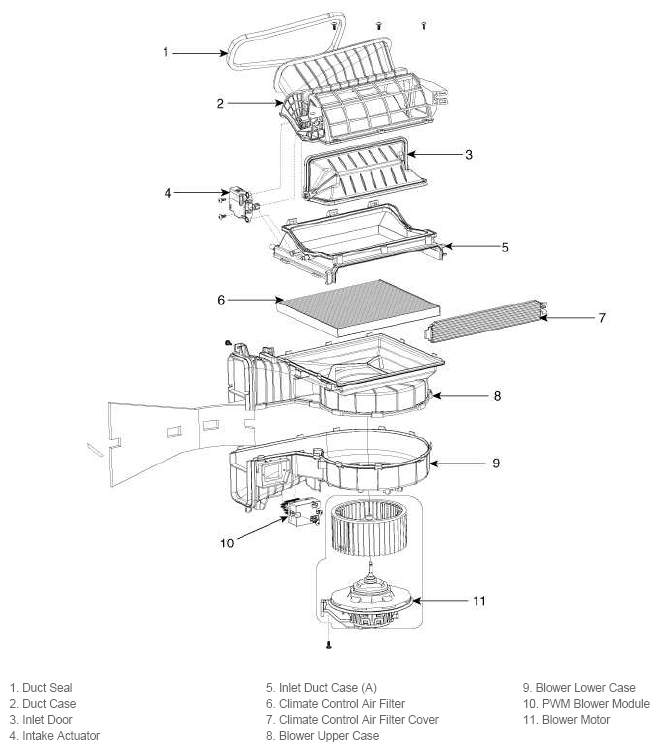

Fig 2: Exploded View Of Blower Unit Components
G11818542Courtesy of KIA MOTORS AMERICA, INC.
