Automatic Transaxle Control System - 2.4L - Optima (Except HEV)
›
Inhibitor Switch
›
Troubleshooting
Inhibitor Switch: Troubleshooting

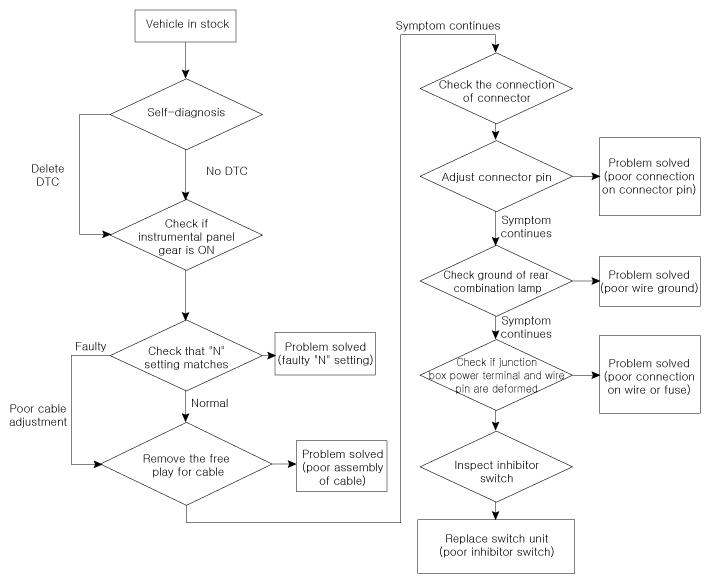

Fig 1: Automatic Transaxle System Flow Chart
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
