Automatic Transaxle Control System - 2.4L - Optima (Except HEV)
›
Output Speed Sensor
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

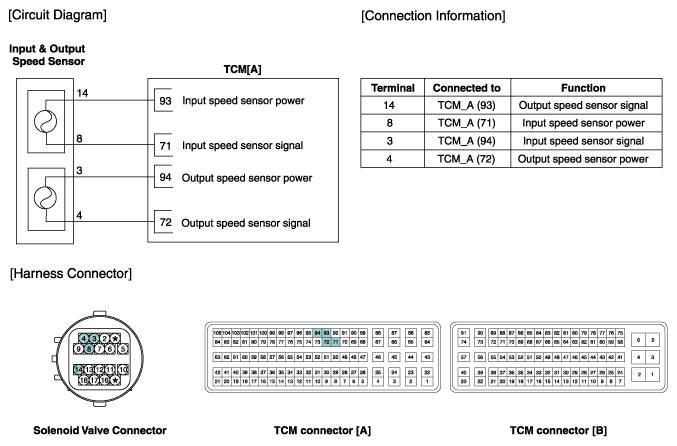

Fig 1: Input And Output Speed Sensor Schematic
Courtesy of KIA MOTORS AMERICA, INC.
