Home › Kia › 2016 › Optima Hybrid EX › Repair and Diagnosis › Engine Mechanical › Starter › Button Engine Start System (HEV) › Start/Stop Button › Components And Components Location › Component

Components And Components Location: Component

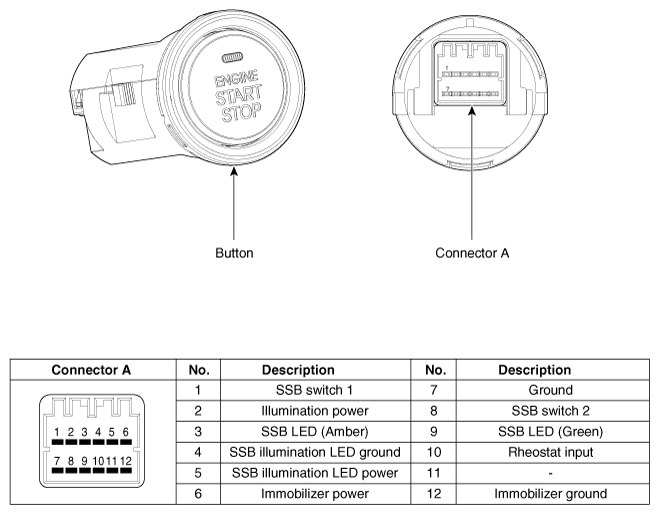

Fig 1: Start/Stop Button Components And Terminal Description
G11818349Courtesy of KIA MOTORS AMERICA, INC.
