Optima Hybrid EX
›
Repair and Diagnosis
›
Engine Performance
›
Engine Control Systems
›
Engine Control System (HEV)
›
ETC (Electronic Throttle Control) System
›
Schematic Diagram
›
Circuit Diagram
Circuit Diagram

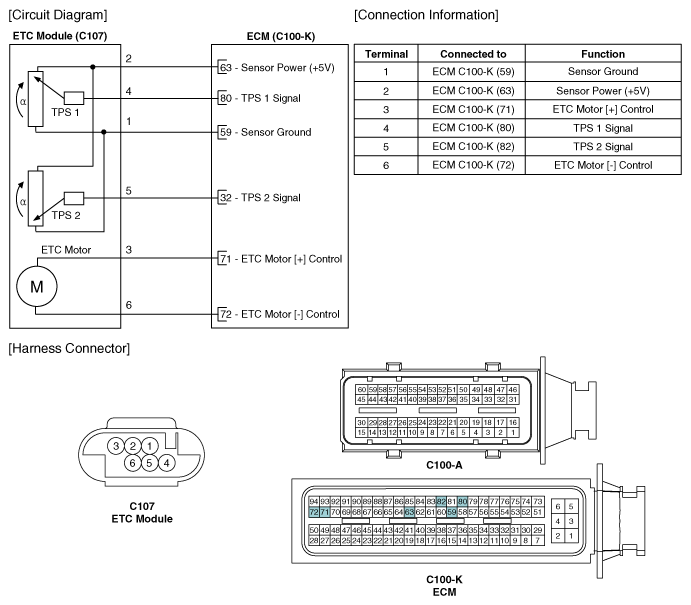

Fig 1: ETC Module Circuit Diagram & Terminal Descriptions
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
