Spark Test

Disconnect the ignition coil connectors (A).

Fig 1: Disconnecting Ignition Coil Connectors (A)
Courtesy of KIA MOTORS AMERICA, INC.

NOTE: When disconnecting the ignition coil connector, pull out the locking pin (A) and then pull out the connector while pressing the clip (B).

Fig 2: Pressing Clip (B) To Disconnect Ignition Coil
Courtesy of KIA MOTORS AMERICA, INC.
Remove the ignition coils (A).

Fig 3: Removing Ignition Coils (A)
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the injector connectors (A).

Fig 4: Disconnecting Injector Connectors (A)
Courtesy of KIA MOTORS AMERICA, INC.
Using a spark plug socket, remove the spark plug.
Install the spark plug to the ignition coil.
Ground the spark plug to the engine.

Fig 5: Removing Spark Plug And Grounding Spark Plug To Engine
Courtesy of KIA MOTORS AMERICA, INC.
Check if spark occurs while engine is being cranked.
NOTE: To prevent fuel being injected from injectors while the engine is being cranked, disconnect the injector connector.
Crank the engine for no more than 5 ~ 10 seconds.
Inspect all the spark plugs.
Using a spark plug socket, install the spark plug.
Reconnect the injector connectors.
Install the ignition coils.
Tightening torque:

3.9 ~ 5.9 N.m (0.4 ~ 0.6 kgf.m, 2.9 ~ 4.3 lb-ft)
Reconnect the ignition coil connectors.

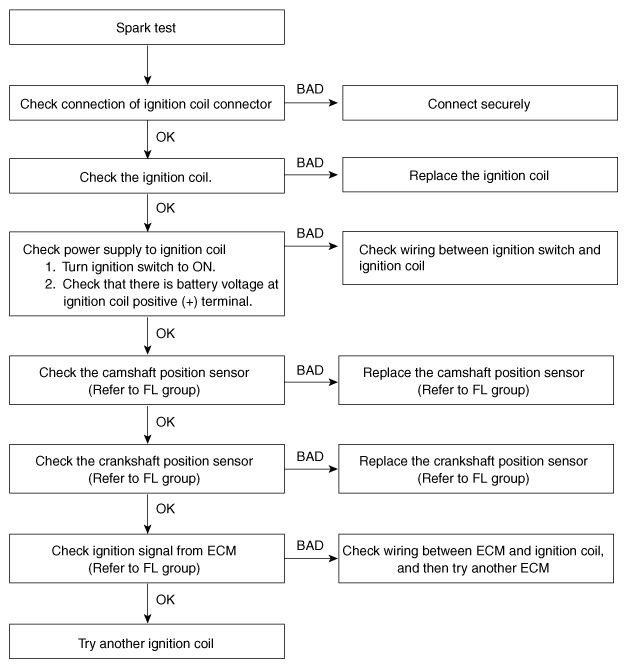

Fig 6: Ignition Coil Troubleshooting Chart
Courtesy of KIA MOTORS AMERICA, INC.
