Components And Components Location: Components

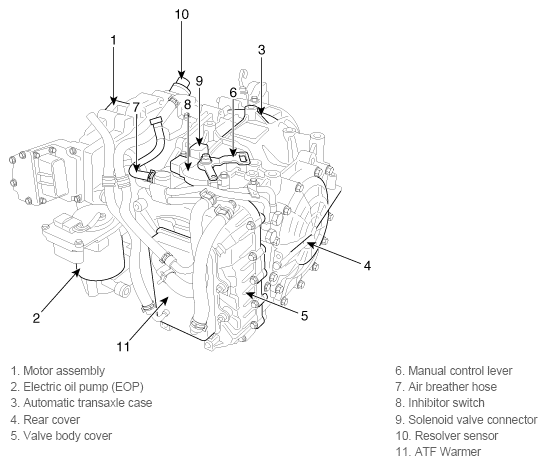

Fig 1: Automatic Transaxle Components Location
G11815862Courtesy of KIA MOTORS AMERICA, INC.
