Transmission
›
Transmission Control Systems
›
Automatic Transaxle Control System (HEV)
›
Input Speed Sensor
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

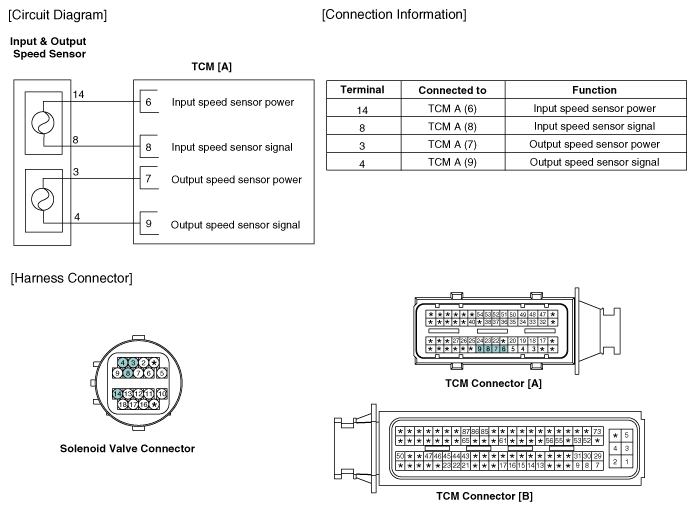

Fig 1: Input And Output Speed Sensor Circuit Diagram & Terminal Description
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
