Kia
›
2016
›
Optima Hybrid
›
Repair and Diagnosis
›
Electrical
›
Starter
›
Button Engine Start System (HEV)
›
Button Engine Start System
›
Schematic Diagrams
›
Circuit Diagram (1)
Circuit Diagram (1)

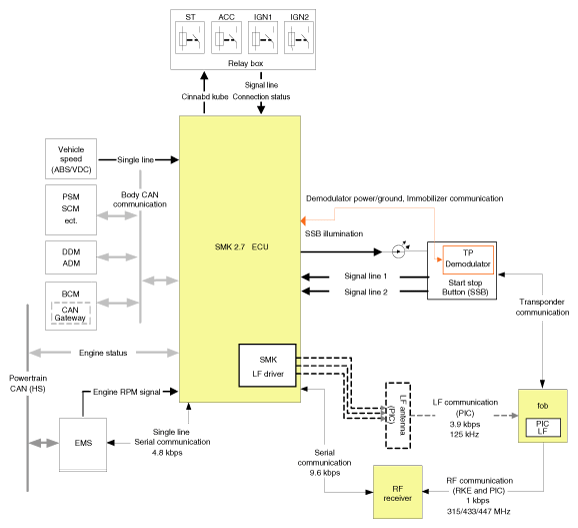

Fig 1: Button Engine Start System - Circuit Diagram (1)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
