Kia
›
2016
›
Optima Hybrid
›
Repair and Diagnosis
›
Engine Performance
›
Engine Control Systems
›
Engine Control System (HEV)
›
Camshaft Position Sensor (CMPS)
›
Schematic Diagram
›
Circuit Diagram
Circuit Diagram

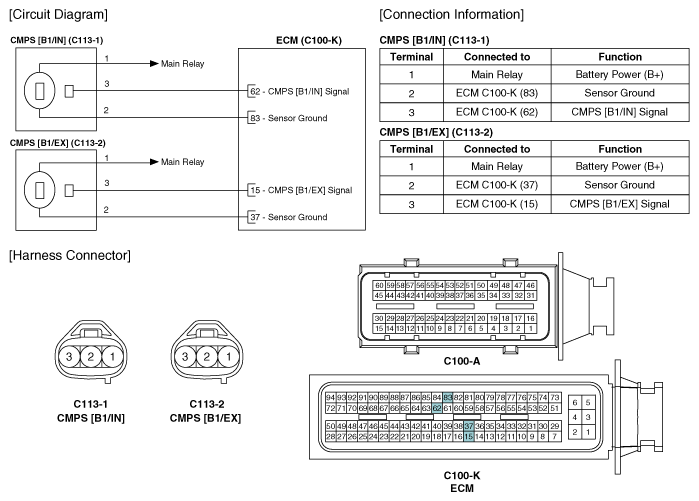

Fig 1: Camshaft Position Sensor Circuit Diagram & Terminal Description
