Optima Hybrid
›
Repair and Diagnosis
›
Engine Performance
›
Engine Control Systems
›
Engine Control System (HEV)
›
Crankshaft Position Sensor (CKPS)
›
Schematic Diagram
›
Circuit Diagram
Circuit Diagram

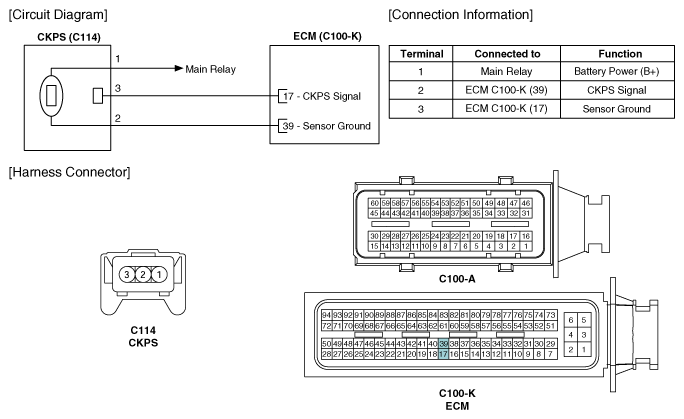

Fig 1: Crankshaft Position Sensor (CKPS) Circuit Diagram & Terminal Description
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
