Schematic Diagram
›
Circuit Diagram
Circuit Diagram

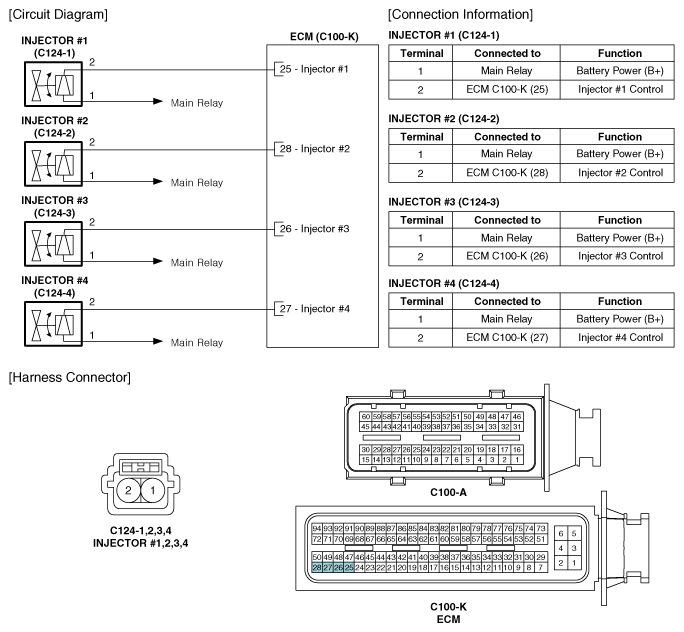

Fig 1: Injector Circuit Diagram & Terminal Description
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
