Kia
›
2016
›
Optima Hybrid
›
Repair and Diagnosis
›
Engine Performance
›
Engine Control Systems
›
Engine Control System (HEV)
›
Purge Control Solenoid Valve (PCSV)
›
Schematic Diagram
›
Circuit Diagram
Circuit Diagram

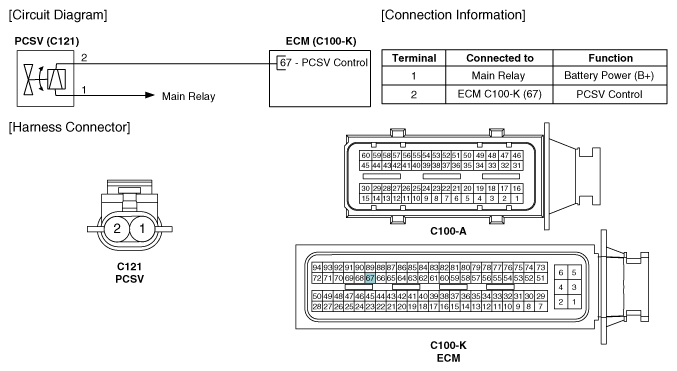

Fig 1: Purge Control Solenoid Valve Circuit Diagram & Terminal Description
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
