Engine Control System - 1.6L - Optima (Except HEV)
›
Camshaft Position Sensor (CMPS)
›
Troubleshooting
›
Wave Form
Wave Form

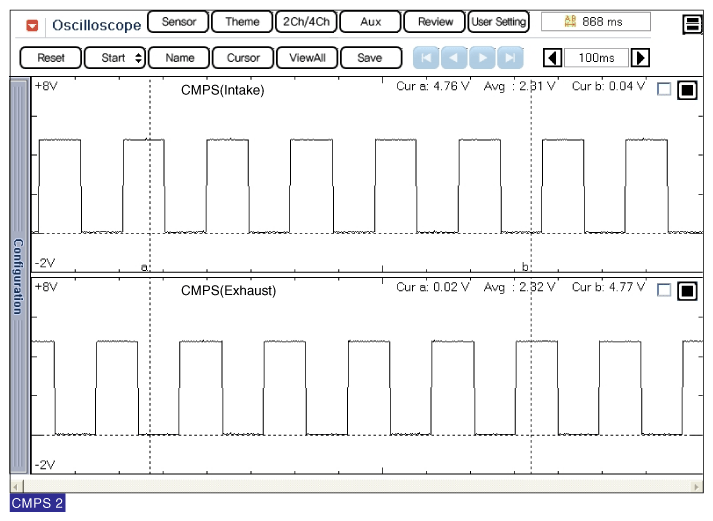

Fig 1: Screen Display - CKPS And CMPS (Intake) Signal Waveform (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

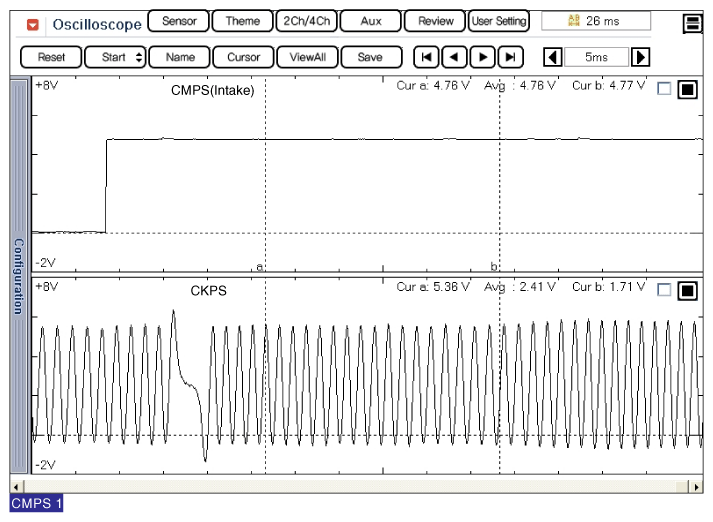

Fig 2: Screen Display - CKPS And CMPS (Intake) Signal Waveform (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
