Repair Procedures: Removal

Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
Disconnect the crankshaft position sensor connector (A).

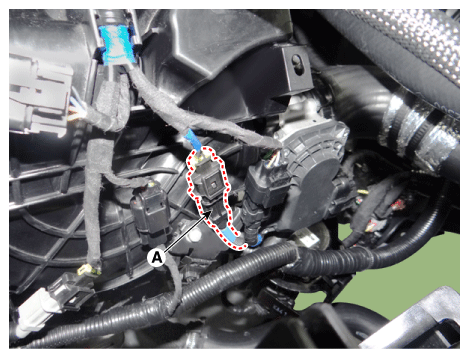

Fig 1: Disconnecting Crankshaft Position Sensor Connector
Courtesy of KIA MOTORS AMERICA, INC.
Remove the engine room under cover,
(Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")
Remove the sensor (A) by loosening the mounting bolt.

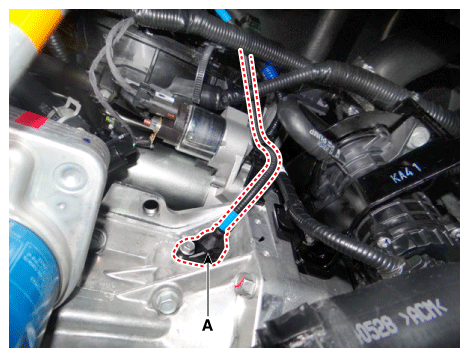

Fig 2: Locating Sensor

Courtesy of KIA MOTORS AMERICA, INC.
