Repair Procedures: Removal

NOTE: Note that the SST (Part No.: 09392-1Y100 or 09392-2H100) is useful when removing the heated oxygen sensor.

Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
Disconnect the connector (A), and then remove the sensor (B).
[Bank 1/Sensor 1]

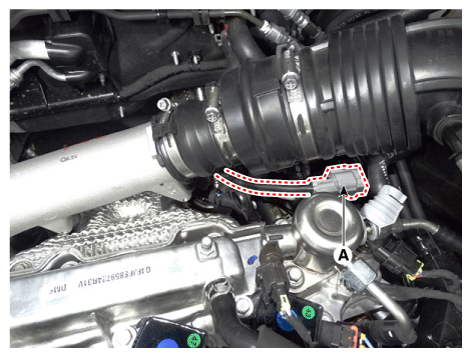

Fig 1: Disconnecting Connector (Bank 1/Sensor 1; 1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

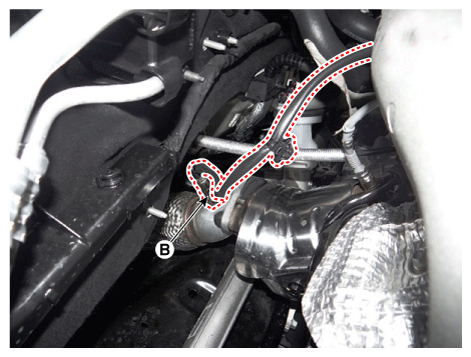

Fig 2: Disconnecting Connector (Bank 1/Sensor 1; 2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

[Bank 1/Sensor 2]

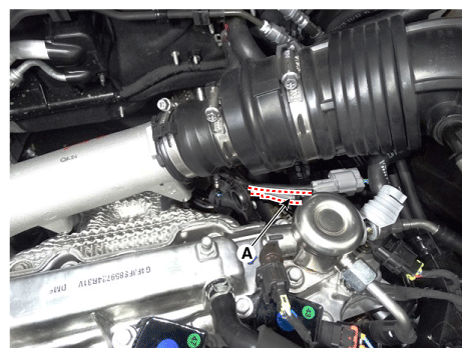

Fig 3: Disconnecting Connector (Bank 1/Sensor 2; 1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

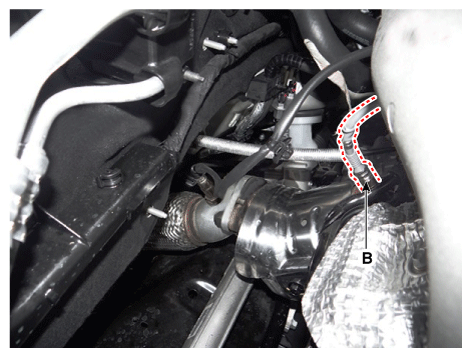

Fig 4: Disconnecting Connector (Bank 1/Sensor 2; 2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
